轻触开关

名称：TVFU03

详细信息

系列： TVFU03

特点： Long-travel

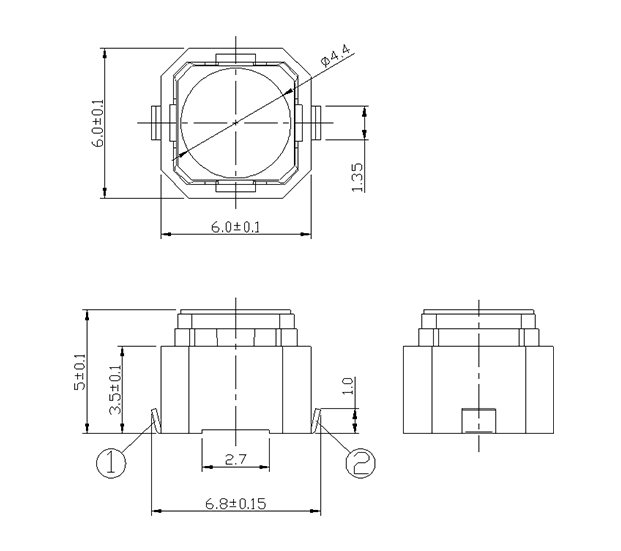

尺寸： 6.0X6.0mm

产品分类： 轻触开关 - F系列 / 硅胶柔感

Applications

※ Car electronics equipment

※ Input operation switches for telephones,electronic musical

※ Instruments

※ Steady and low contact resistance

※ Improved operating by using a larger push plate

※ Excellent solderability

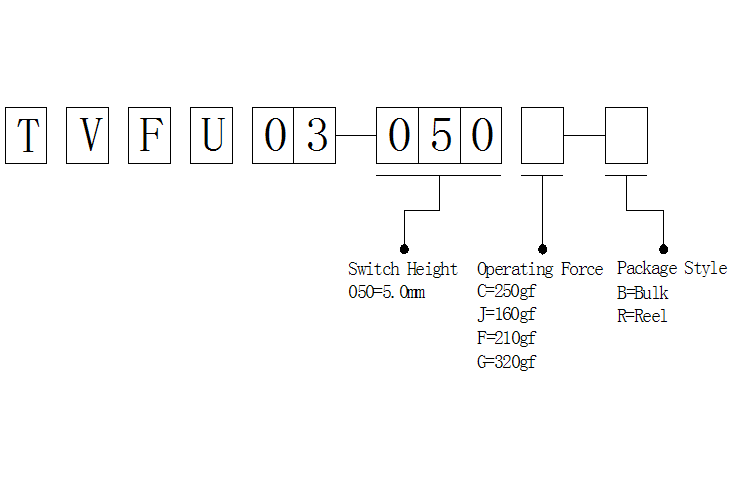

PART NO.	TYPE	Operating force	Operating direction	travel	Operating ife	Initial contact resistance	Stem height
TVFU03-050C	Surface mount	250gf	Top push	1.30	100,000 cycles	500mN max	5.0mm

BULK：4KPCS/BULK
TAPE&REEL：1KPCS/REEL
